PRELUDE F50 | R60

You are prepared for the finale

1090 g

(Wheel-Set)

1090 g
(Wheel-Set)

Set the stage for victory with the PRELUDE 50/60 wheel set from RAYDN.
Engineered for speed and performance, PRELUDE embodies the spirit of racing excellence, delivering unrivalled acceleration and control on the road.

Just as the word "prelude" heralds the beginning of an epic journey, our PRELUDE wheel-set paves the way for success, propelling you toward the finish line with unmatched speed and precision while saving you as much energy as possible.

PRELUDE offers the perfect balance of a stiff, lightweight construction and aerodynamic design, allowing you to unleash your full potential on the race course.

Technology | Speed | Emotion

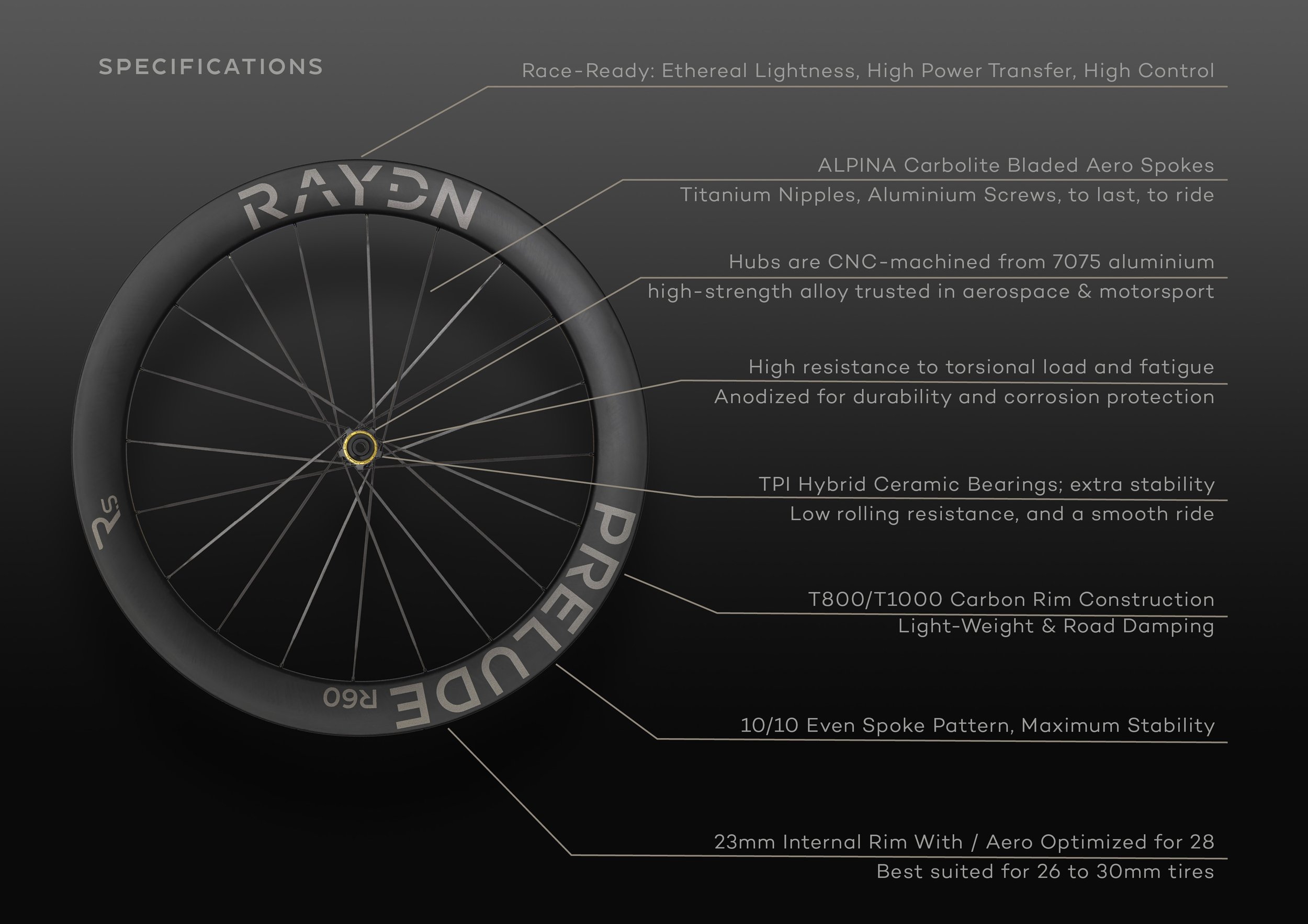

Infographic of a bicycle wheel showing specifications: race-ready with ethereal lightness, high power transfer, and high control; carbon rim construction, CNC-machined hubs, hybrid ceramic bearings, T800/T1000 carbon rim, 23mm internal width, 10/10 spoke pattern.

Our 2x10 Carbon Spoke pattern delivers incredible responsiveness and is designed symmetrically to enhance stability and control, the first riders notice in their very first ride is that control and confidence. We found that an even 10-spoke layout on each side provides a balanced design for greater handling and confidence.

Optimized for both tubeless and tubed tires, the 23mm wide internal hooked rim enhances safety and compatibility across a broad range of tire pressures. Designed for tire widths between 26mm and 32mm, with 28mm offering the highest aerodynamic performance, these wheels strike the perfect balance between speed and stability.

To meet UCI road racing standards, wheels must withstand an impact of 40 joules ±5% to gain certification. Our RS RennSport Edition far exceeds this benchmark, engineered to endure impacts of at least 90 joules ±5% under UCI test conditions, for durability and performance.

SPECIFICATIONS

Disk Brake Wheels Only

Matt or Glossy Rim Surface

Weight: 1090 g ± 1.5%

Rim Profile: 50 mm front | 60 mm rear

Max. System Weight: 110 kg

Rims: ETRO: 622mm / Hooked Design

Aero profile T800/T1000 high modulus premium carbon fibre rims

Internal Width: 23 mm

External Width: 29,8 mm

TPI Hub Bearings: Hybrid Ceramic

Tire Type: Tubeless & Clinchers

Tire Width Optimal: 26 to 30 mm

Aero Tire Width Optimal: 28 mm

Tire Pressure Optimal at 70kg rider weight:

70 PSI up to 26 mm / 65 PSI @ 28 mm / 60 PSI @ 30 mm

Tire Pressure max: 100 PSI up to 26 mm / 90 PSI @ 28 mm / 80 PSI @ 30 mm

ALPINA Carbolight Spokes: 20 carbon fibre bladed aero spokes

Even 10/10 Spoke Pattern for optimal handling

Incredible tensile strength

UCI impact resistance passed 110 Joules ±5%

Hub width: 100 mm front, 142 mm rear

Free-hub: SRAM XDR . Shimano HG11s/12s . Campagnolo N3W

Passion: 100%
