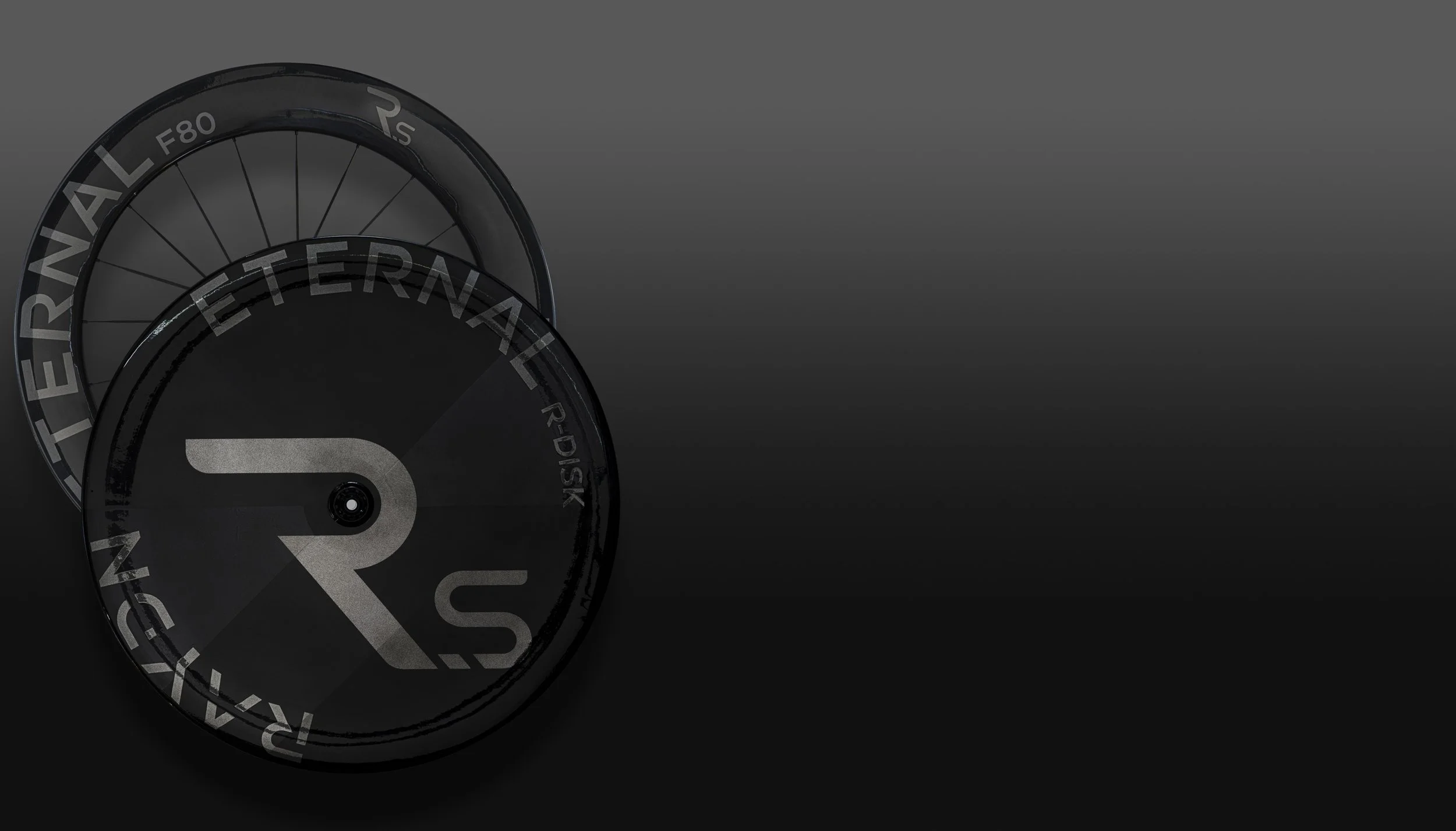

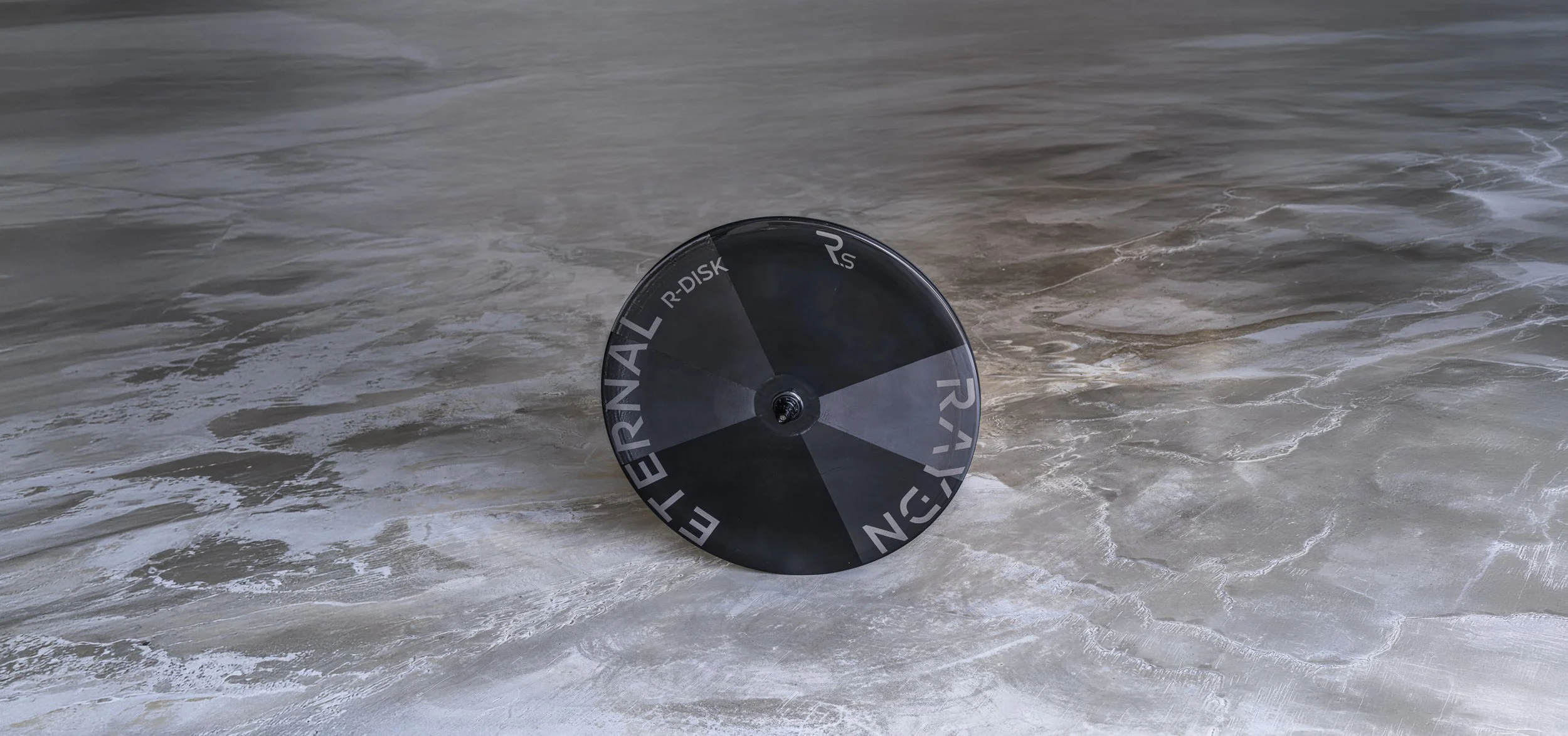

ETERNAL F80 | R-Disk
Pure Aerodynamics
1750 gram
(Wheel-Set with Rear Disk)
1480 gram
(Wheel-Set in combination with the SERENITY R80 Rear Wheel)
1090 g
(Wheel-Set)
The ETERNAL F80/R-DISK wheel-set from RAYDN is engineered for those who demand uncompromising aerodynamic performance and delivers the speed required to excel in time trials and triathlons and also designed to pair seamlessly with our SERENITY R80 Rear Wheel
Optimized to cut through the wind, offering minimal drag and maximum efficiency.
Its advanced design ensures stability even in variable conditions, allowing you to maintain focus and confidence as you push toward the finish line.
The name ETERNAL embodies the essence of lasting performance in your pursuit of speed, carrying you forward with the feeling of endless momentum.
Technology | Speed | Emotion
Our 2x10 Carbon Spoke pattern delivers incredible responsiveness and is designed symmetrically to enhance stability and control, the first riders notice in their very first ride is that control and confidence. We found that an even 10-spoke layout on each side provides a balanced design for greater handling and confidence.
Optimized for both tubeless and tubed tires, the 23mm wide internal hooked rim enhances safety and compatibility across a broad range of tire pressures. Designed for tire widths between 26mm and 32mm, with 28mm offering the highest aerodynamic performance, these wheels strike the perfect balance between speed and stability.
To meet UCI road racing standards, wheels must withstand an impact of 40 joules ±5% to gain certification. Our RS RennSport Edition far exceeds this benchmark, engineered to endure impacts of at least 90 joules ±5% under UCI test conditions, for durability and performance.

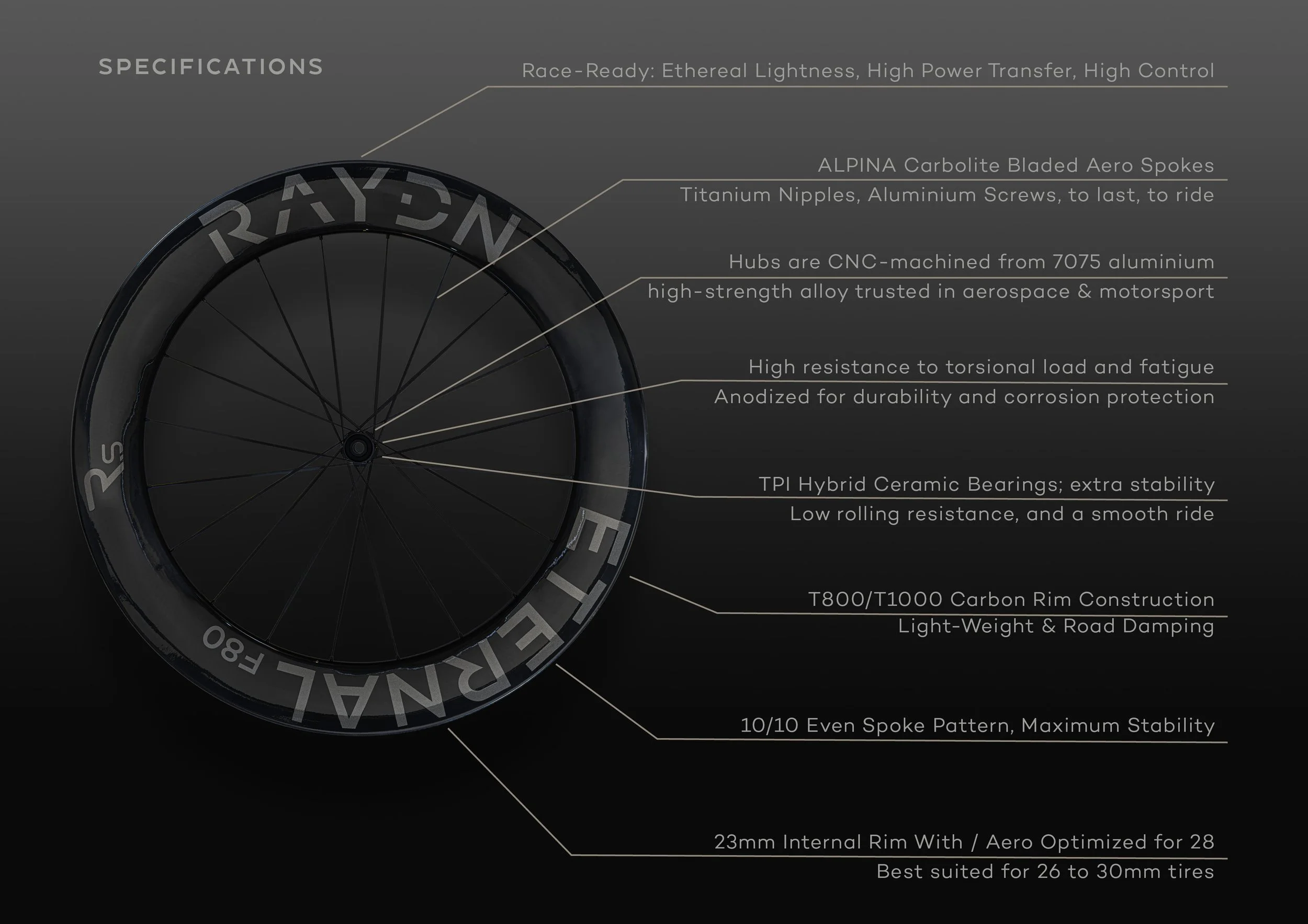

SPECIFICATIONS
Disk Brake Wheels Only
Glossy Rim Surface
Weight: 1740 g ± 1.5%
Rim Profile: 80 mm front | Disk rear
Max. System Weight: 125 kg
Weight: 1410 g ± 1.5%
Rim Profile: 80 mm front | 80 mm rear
Max. System Weight: 120 kg
Rims: ETRO: 622mm / Hooked Design
Aero profile T800/T1000 high modulus premium carbon fibre rims
Internal Width: 23 mm
External Width: 29,8 mm
TPI Hub Bearings: Hybrid Ceramic
Tire Type: Tubeless & Clinchers
Tire Width Optimal: 26 to 30 mm
Aero Tire Width Optimal: 28 mm
Tire Pressure Optimal at 70kg rider weight:
70 PSI up to 26 mm / 65 PSI @ 28 mm / 60 PSI @ 30 mm
Tire Pressure max: 100 PSI up to 26 mm / 90 PSI @ 28 mm / 80 PSI @ 30 mm
ALPINA Carbolight Spokes: 20 carbon fibre bladed aero spokes
Even 10/10 Spoke Pattern for optimal handling
Incredible tensile strength
UCI impact resistance passed 120 Joules ±5%
Hub width: 100 mm front, 142 mm rear
Free-hub: SRAM XDR . Shimano HG11s/12s . Campagnolo N3W
Passion: 100%
